联系人：刘涛DTⅡ型承载托辊，为您的设备贴身设计的纯正配件，您的理想选择，如沙漠之舟一样坚定不懈托举您的皮带滚滚不息。无论从设计还是工程施工的角度，DTⅡ型承载托辊都有独特之处。DTⅡ型承载托辊含各类型槽型托辊。这意味着每一个规格的DTⅡ型承载托辊在设计制造之初已经充分考虑到用户设备运行时的磨损类型及承载量。
承载托辊 MM

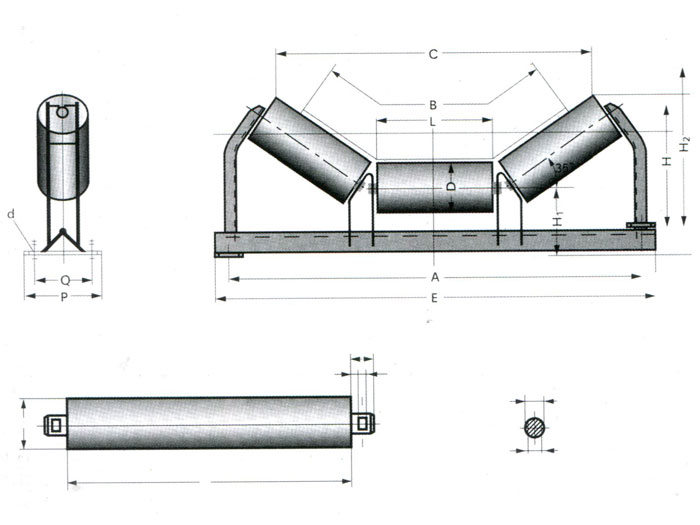

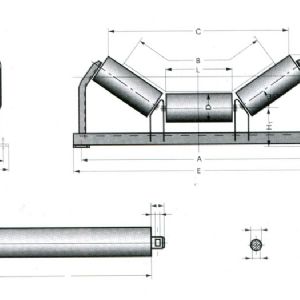

带宽B | 辊子 | A | E | H1 | H | H2 | P | Q | d | 质量/kg | 图号 | |||
D | L | 图号 | 轴承 | |||||||||||
500 | 89 | 200 | DT Ⅱ GP1101 | 4G204 | 740 | 800 | 135.5 | 220 | 300 | 170 | 130 | M12 | 15.3 | DT Ⅱ 01C0111 |
650 | 250 | DT Ⅱ GP1102 | 890 | 950 | 235 | 329 | 16.6 | DT Ⅱ 02C0111 | ||||||
800 |
| DT Ⅱ GP1103 | 1090 | 1150 | 245 | 366 | 21.5 | DT Ⅱ 03C0111 | ||||||
| 108 | 315 | DT Ⅱ GP2103 | 146 | 270 | 385 | 24.3 | DT Ⅱ 03C0121 | |||||||
DT Ⅱ GP2203 | 4G205 | 26.2 | DT Ⅱ 03C0122 | |||||||||||
1000 | 380 | DT Ⅱ GP2204 | 1290 | 1350 | 159 | 300 | 437 | 220 | 170 | M16 | 37.6 | DT Ⅱ 04C0122 | ||
DT Ⅱ GP2304 | 4G305 | 38.7 | DT Ⅱ 04C0123 | |||||||||||
133 | DT Ⅱ GP3204 | 4G205 | 173.5 | 325 | 462 | 43.5 | DT Ⅱ 04C0132 | |||||||
DT Ⅱ GP3304 | 4G305 | 45 | DT Ⅱ 04C0133 | |||||||||||
1200 | 108 | 465 | DT Ⅱ GP2205 | 4G205 | 1540 | 1600 | 176 | 335 | 503 | 260 | 200 | M16 | 50.1 | DT Ⅱ 05C0122 |
DT Ⅱ GP2305 | 4G305 | 51.2 | DT Ⅱ 05C0123 | |||||||||||
DT Ⅱ GP2405 | 4G306 | 55.1 | DT Ⅱ 05C0124 | |||||||||||
133 | DT Ⅱ GP3205 | 4G205 | 190.5 | 360 | 528 | 57.5 | DT Ⅱ 05C0132 | |||||||
DT Ⅱ GP3305 | 4G305 | 58.6 | DT Ⅱ 05C0133 | |||||||||||
DT Ⅱ GP3405 | 4G306 | 63.8 | DT Ⅱ 05C0134 | |||||||||||
159 | DT Ⅱ GP4205 | 4G205 | 207.5 | 390 | 557 | 65.1 | DT Ⅱ 05C0142 | |||||||
DT Ⅱ GP4305 | 4G305 | 66.4 | DT Ⅱ 05C0143 | |||||||||||
DT Ⅱ GP4405 | 4G306 | 71.6 | DT Ⅱ 05C0144 | |||||||||||
1400 | 108 | 530 | DT Ⅱ GP2306 | 4G305 | 1740 | 1800 | 184 | 350 | 548 | 280 | 220 | M16 | 56.6 | DT Ⅱ 06C0123 |
DT Ⅱ GP2406 | 4G306 | 68.8 | DT Ⅱ 06C0124 | |||||||||||
133 | DT Ⅱ GP3306 | 4G305 | 198.5 | 380 | 573 | 64.9 | DT Ⅱ 06C0133 | |||||||
DT Ⅱ GP3406 | 4G306 | 78.3 | DT Ⅱ 06C0134 | |||||||||||
159 | DT Ⅱ GP4306 | 4G305 | 215.5 | 410 | 603 | 74.8 | DT Ⅱ 06C0143 | |||||||
DT Ⅱ GP4406 | 4G306 | 86.9 | DT Ⅱ 06C0144 | |||||||||||
